Pivot Joints Assembly

This page covers assembly of all the steering/pivoting elements of rover suspension.

Estimated Time: 10 minutes total.

Corner Steering

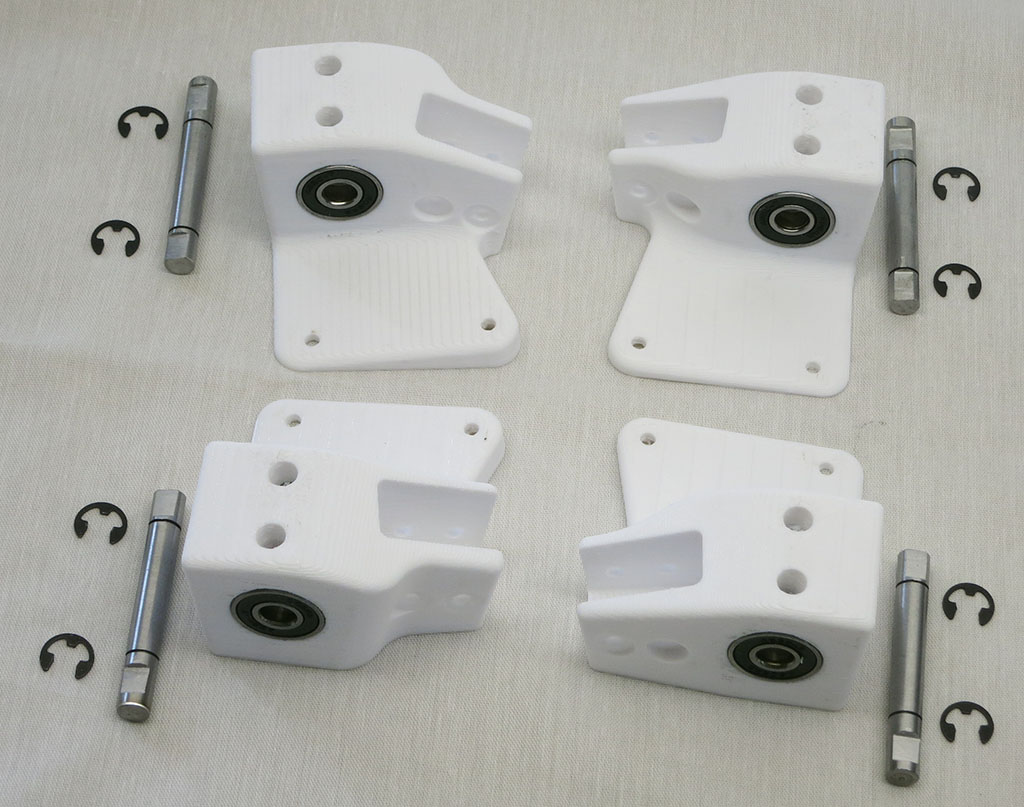

Parts: * 4 * Corner steering components * 4 * Steering shafts * 8 * Retaining E-clips

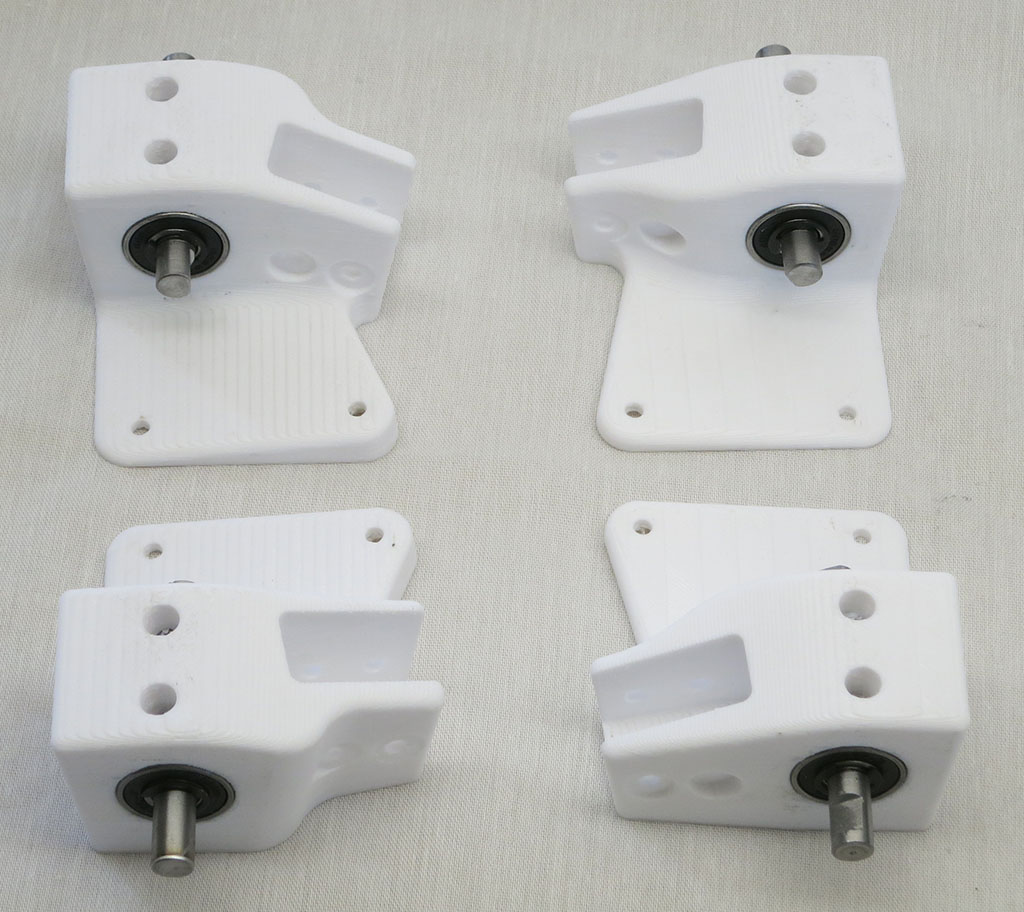

For each corner steering module, use 2 e-clips to hold a steering shaft in place.

Bogie Joint

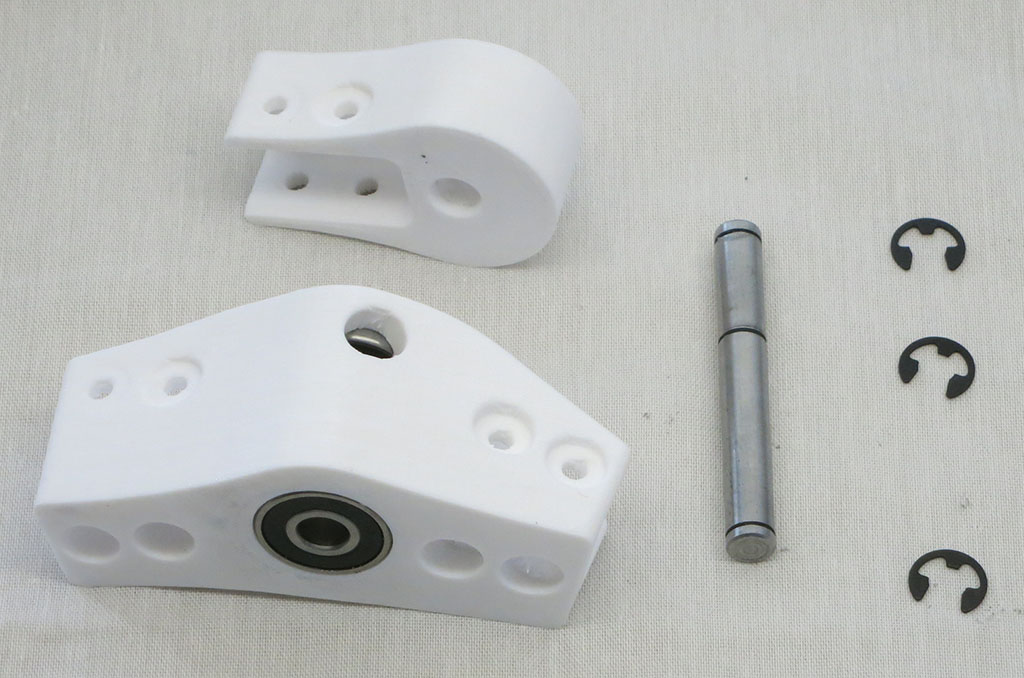

Parts: * 2 * Bogie Joint * 2 * Bogie Pivot Shaft * 6 * Retaining E-clips

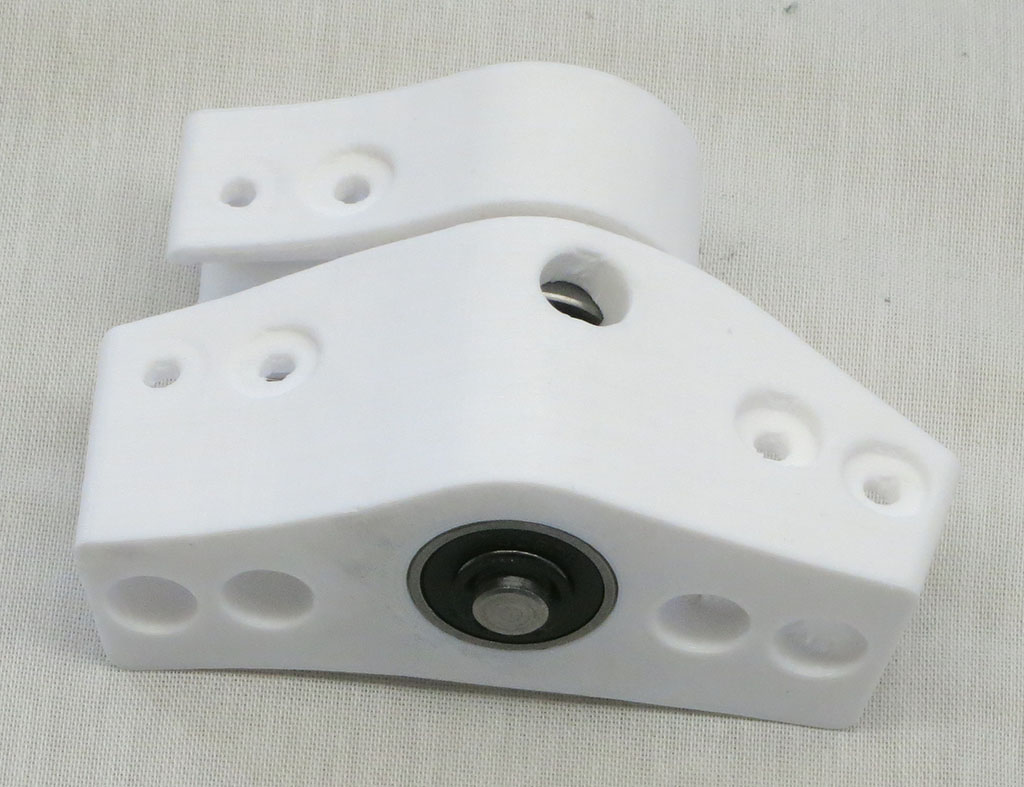

Use 3 e-clips to install shaft into the joint, and both elements of the joint onto the shaft.

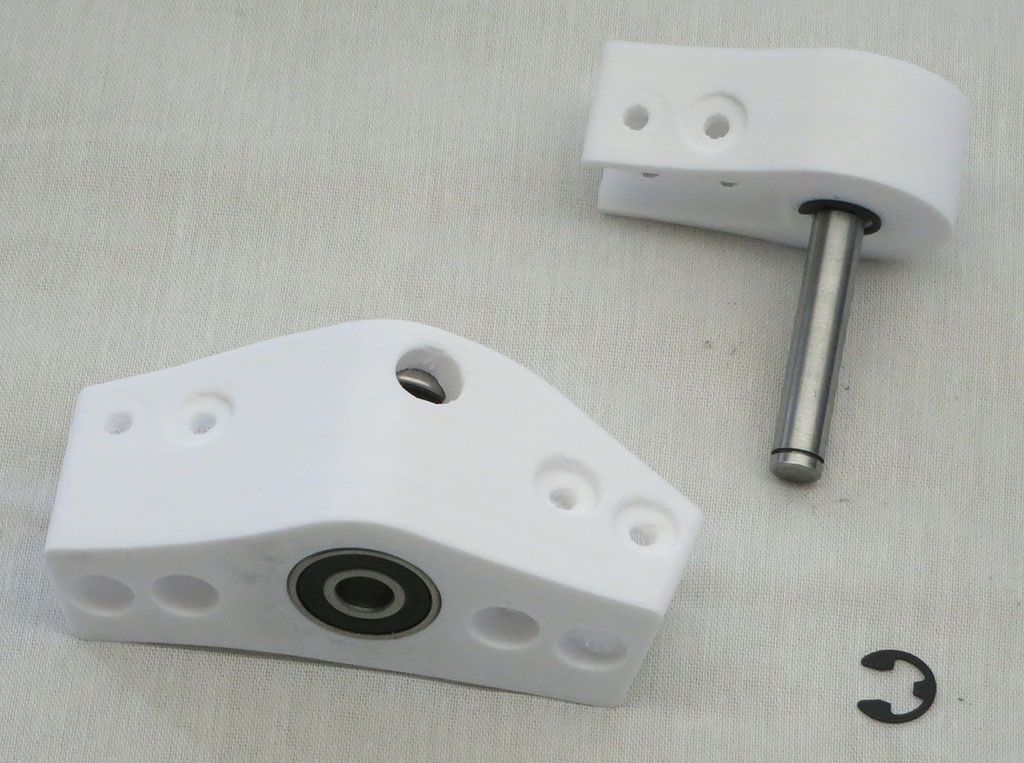

After all parts have been verified to fit, separate them again. They will be built into different sub-assemblies before meeting back up again later.

Repeat for mirror-image bogie joint for other side of rover.

Rocker Joint

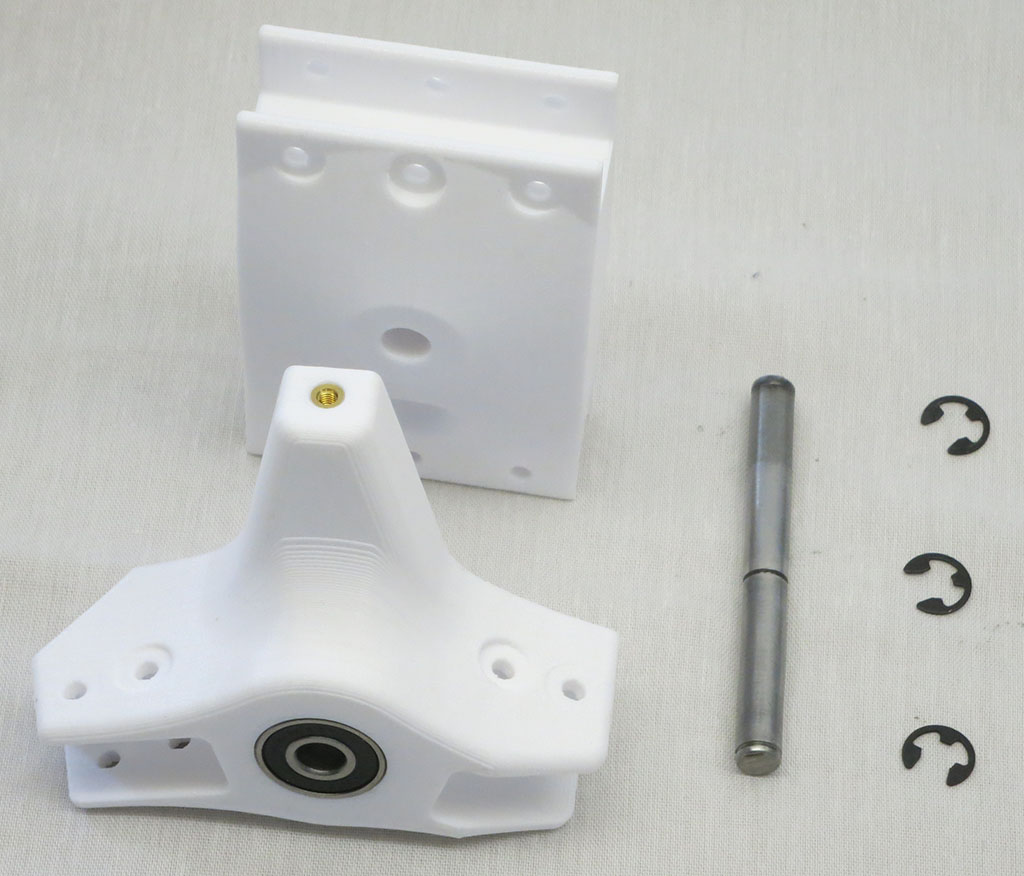

Parts: * 2 * Rocker Joint * 2 * Rocker Pivot Shaft * 6 * Retaining E-clips

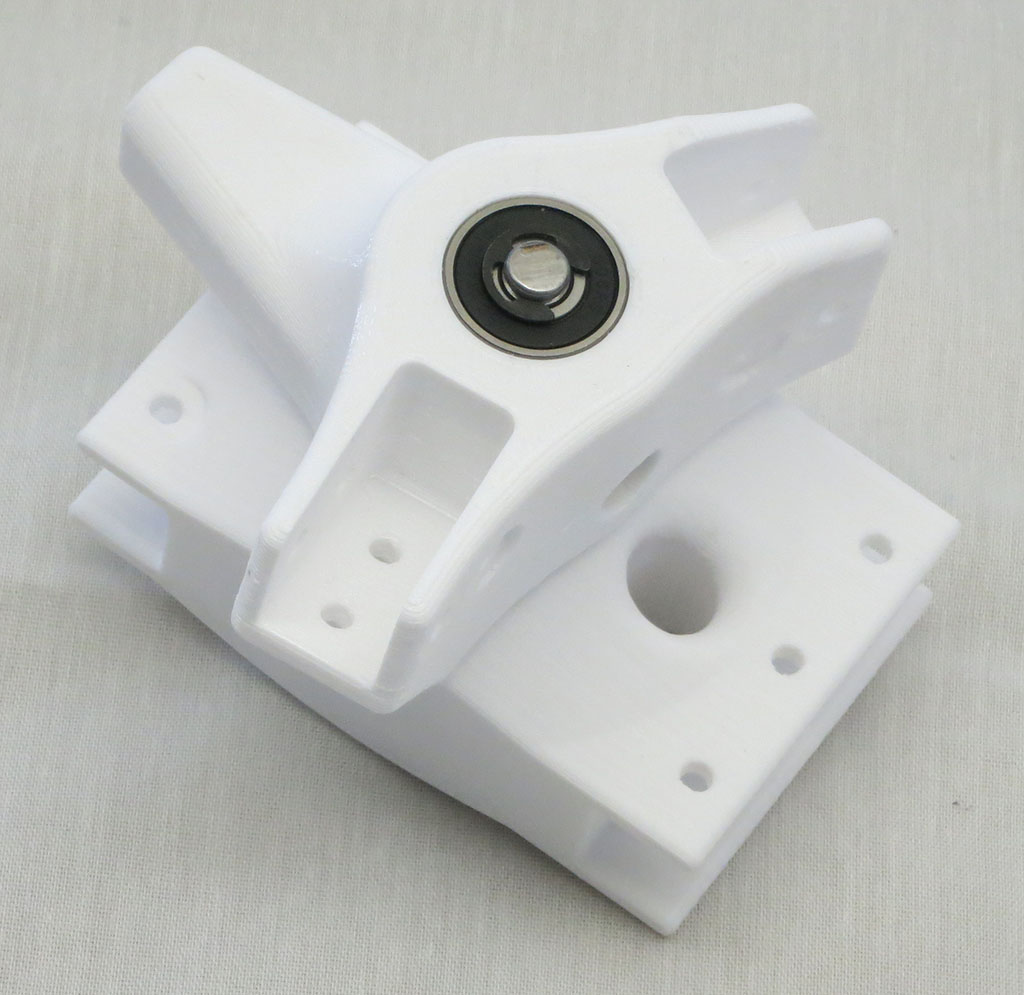

Use 3 e-clips to install shaft into the joint, and both elements of the joint onto the shaft.

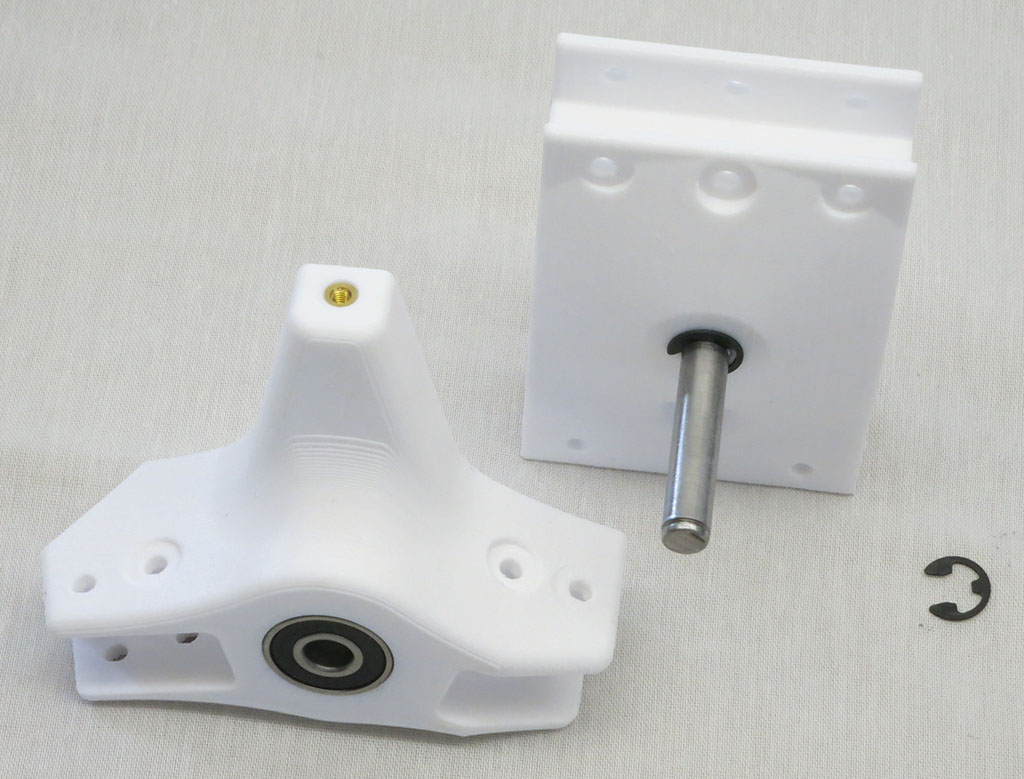

After all parts have been verified to fit, separate them again. They will be built into different sub-assemblies before meeting back up again later.

Repeat for other side of rover.
